Drone

February 2023

About

A dystopian drone icecast stream with micropower simulcast on 89.3 FM powered by Mozzi and a Teensy 3.1 microcontroller by PJRC. The project is based on an original by Tod Kurt (@todbot@mastodon.social). See Tod's mozzi experiments page at https://github.com/todbot/mozzi_experiments.

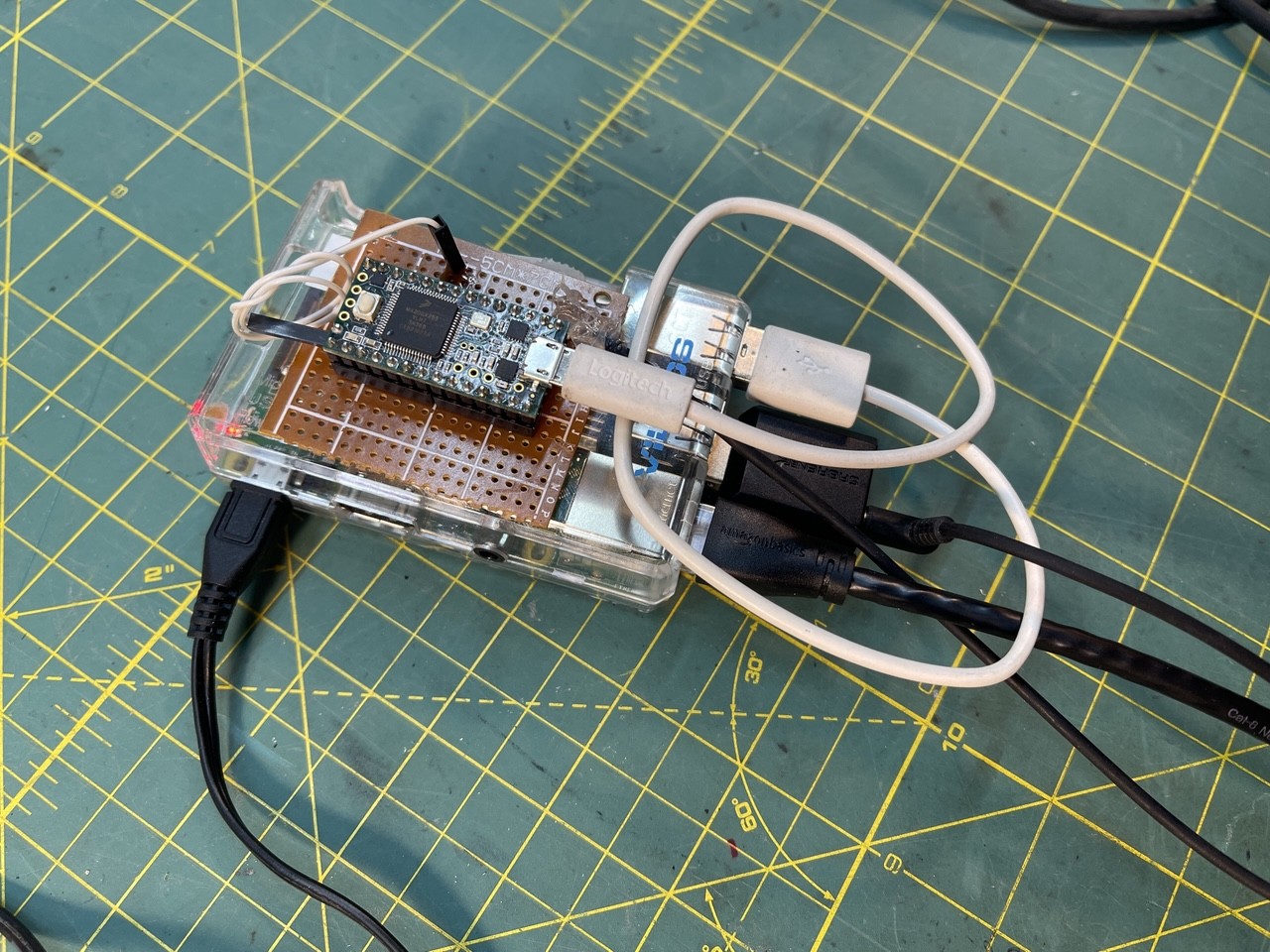

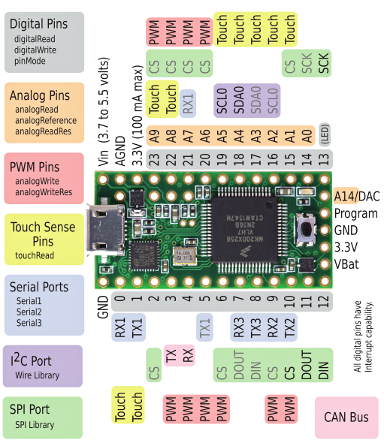

The current setup uses a Raspberry Pi 3 Model B+, a Sabrent USB sound adapter, and B.U.T.T. (Broadcast Using This Tool - https://danielnoethen.de/butt/) to stream to the Lurk.org Icecast server. The Teensy output is on pin A14/DAC, which connects to the audio in.

After tightening it up (February 2025)...

Listen

• http://echo.lurk.org:999/ef1j.mp3

Code

• https://github.com/ef1j/mozzi_experiments/tree/main/eliane

Our sponsors

Dystopian Drone is brought to you by

Shimago-Domínguez Corporation

A new life awaits you in the Off-world colonies!

Shimago-Domínguez Corporation

Helping America into the new world.

And by the generosity of humans like you.

Publicity

• PJRC Blog, June 18, 2023 -- https://www.pjrc.com/dystopian-drone-synth/
